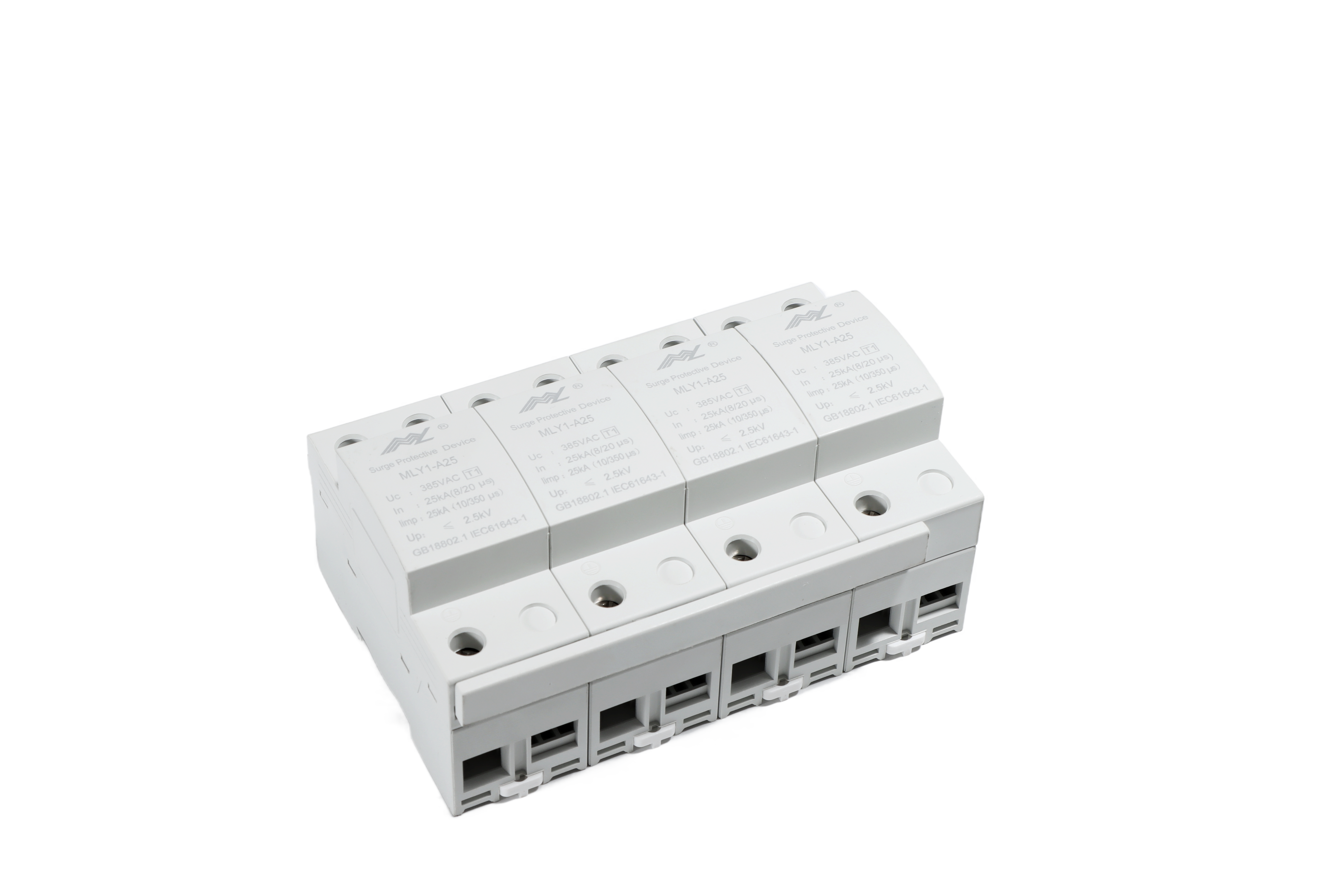

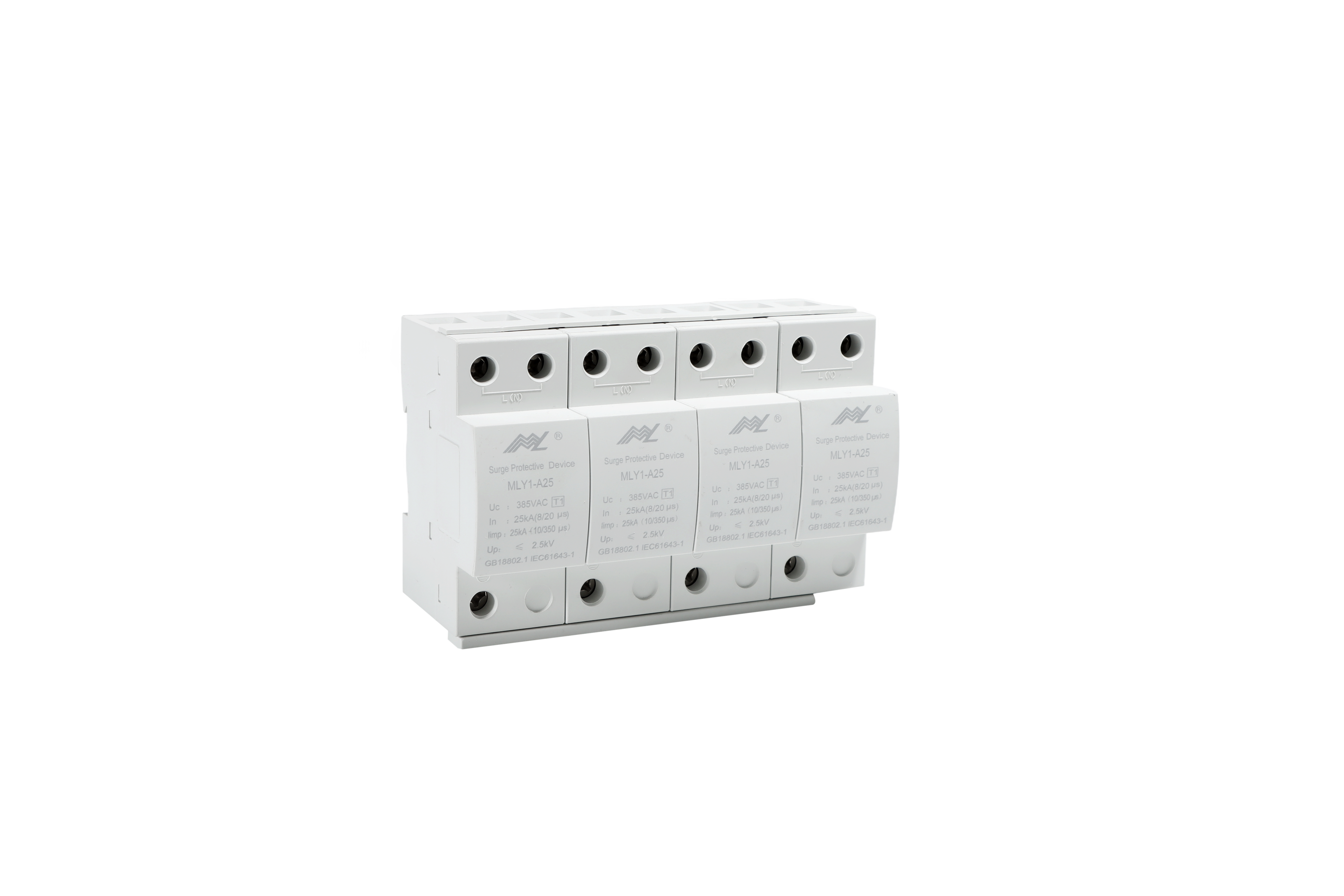

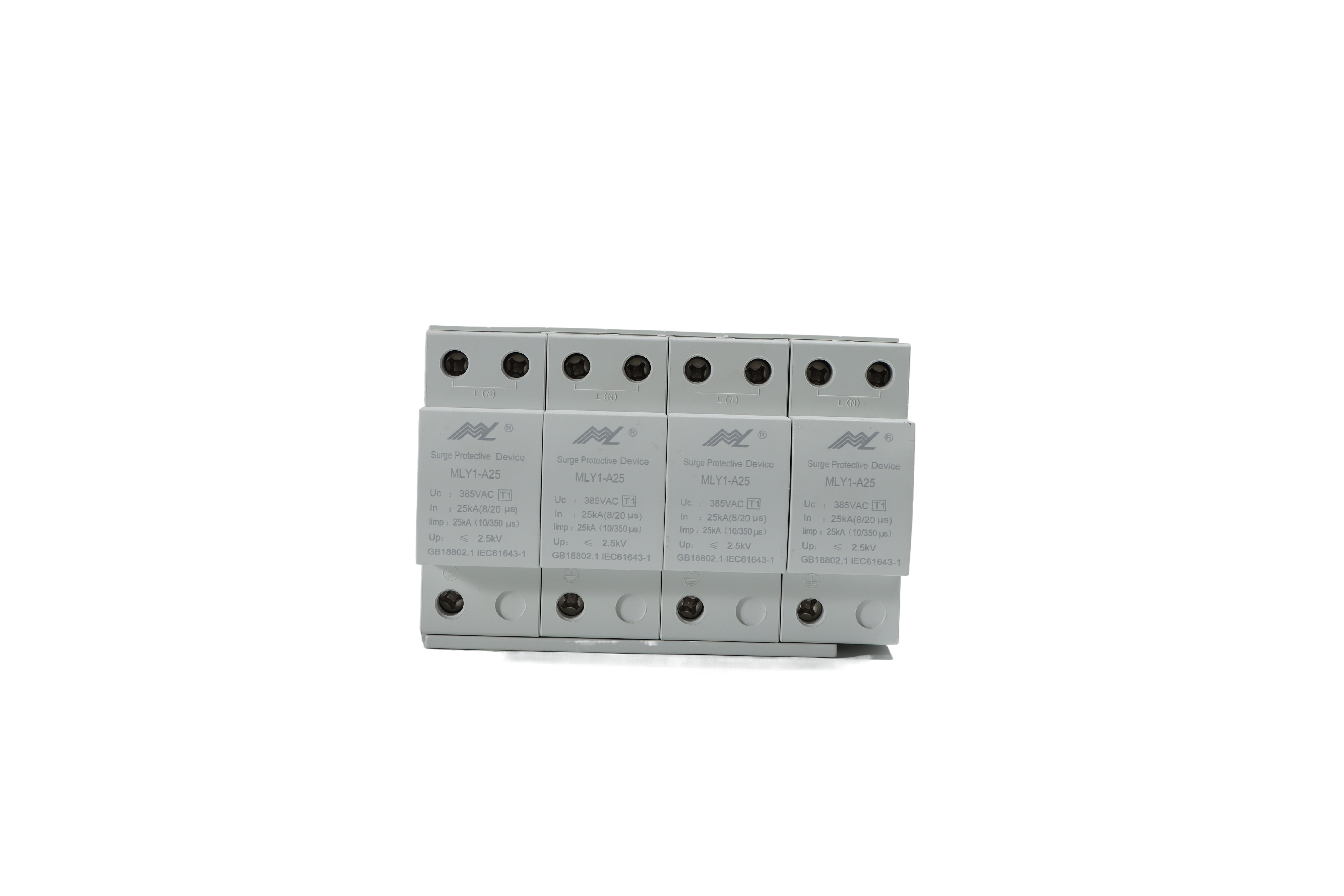

The MLY1-A25-50B Lightning Surge Protector: Your Reliable Shield Against Transient Overvoltages

In an era where electrical systems are increasingly vulnerable to lightning strikes and transient overvoltages, the MLY1-A25-50B Lightning Surge Protector (SPD) emerges as a vital solution for safeguarding your power supply systems. Designed for AC 50/60Hz applications at 380V, this surge protector is compatible with TT, TN, and other power supply configurations, making it an ideal choice for areas with high lightning risk. The MLY1-A25-50B is specifically engineered to be installed at the junction of LPZOB and LPZ1, serving as a primary (B-level) lightning protection device that meets the stringent requirements outlined in the current GB50057-2010 and GB 18802.1 standards.

The MLY1-A25 surge protector boasts impressive technical features that set it apart from conventional surge protection devices. With a large impulse current capacity of 30kA and a low residual voltage of just 2.5kV, this one-port indoor fixed voltage switch type SPD is designed to handle the most demanding electrical environments. Its core device incorporates multi-level graphite gaps, which are meticulously designed and precisely processed to form a sealed structure. This innovative design ensures that even during surge current events, there is no risk of arc leakage, providing peace of mind for users. Furthermore, the installation process is straightforward, as there is no need to reserve space for leakage arcs, allowing for a seamless integration into your existing electrical infrastructure.

Installation of the MLY1-A25-50B is user-friendly, as it can be mounted on a standard 35mm rail, making it compatible with various distribution boxes and cabinets where power supply is introduced. The connecting wire can accommodate a range of 6~35mm² multi-strand copper soft wire, while the grounding wire should be a two-color wire of 16mm² or more, with a maximum length of 500mm. To ensure the uninterrupted operation of your power grid, it is recommended that the protector connected to the L line be installed in series with a fuse or circuit breaker, selected according to the nominal current (In). This thoughtful design and installation guidance make the MLY1-A25-50B an essential component for any electrical system, providing reliable protection against the unpredictable forces of nature.

In conclusion, the MLY1-A25-50B Lightning Surge Protector is not just a product; it is a commitment to safety and reliability in your electrical systems. With its robust design, compliance with national standards, and ease of installation, this surge protector is the ideal choice for anyone looking to enhance their lightning protection strategy. Trust the MLY1-A25-50B to safeguard your power supply systems and ensure the longevity and efficiency of your electrical infrastructure.
