Heavy industrial operations across metallurgy, petrochemical refining, and mining facilities require electrical switching apparatus capable of withstanding severe inductive surges and continuous thermal stress. Zhejiang Mulang Electrical Technology Co., Ltd. (MLELE) deploys specialized motorized automatic transfer switch engineering developed through decades of low-voltage manufacturing experience, delivering high short-circuit withstand ratings and rapid arc quenching mechanisms for uninterrupted heavy industrial production lines.
Engineering reliable motorized power transfer across heavy industrial environments centers on four primary mechanical and electrical architectures:
High-Torque Motor Drive and Rapid Kinetic Energy Storage
Heavy industrial switching mechanisms must displace massive copper busbars and multi-pole contact assemblies against high mechanical resistance. MLELE engineers motorized automatic transfer switches with high-torque permanent magnet direct-current (DC) motors paired with precision-machined planetary gear reduction trains. This mechanical configuration converts high rotational speed into controlled actuation torque, driving the main operating shaft through its switching stroke with high dynamic stability.
To maintain contact velocity independent of motor control voltage fluctuations during grid disturbances, the kinematic chain incorporates a spring-actuated energy storage mechanism. The electric motor pre-charges heavy-duty helical springs during the initial stroke. Once past the mechanical top-dead center, the stored kinetic energy discharges instantaneously, accelerating the main contacts through the open-to-close transition in under 100 milliseconds.
Uniform contact closing pressure is maintained by individual coil-spring loading on each electrical pole. This calibrated mechanical pressure prevents contact bounce during high-speed closing events, preventing micro-arcing and contact erosion under heavy inrush currents.
Silver-Alloy Microcrystalline Contacts and Multi-Grid Arc Extinction
High-inductance inductive loads, such as large synchronous motors, variable-frequency drives (VFDs), and heavy transformer primaries, generate intense electrical arcs across opening contacts during power transfers under load. To maintain contact longevity under frequent switching duty, MLELE manufactures stationary and movable contact tips from high-purity microcrystalline silver-nickel (AgNi) or silver-tin-oxide (AgSnO2) composites bonded to high-conductivity oxygen-free copper base conductors.
Surrounding each pole assembly, segmented de-ionizing arc chutes constructed with multiple magnetic steel splitter plates divide the drawn arc into series mini-arcs. The magnetic field draws the ionized plasma column rapidly into the splitter grid, cooling the gas channel and raising total arc voltage above the system supply voltage within 10 to 15 milliseconds.
The arc splitters and phase partitions utilize high-dielectric ceramic and vulcanized fiber materials that resist thermal ablation up to 3000 degrees Celsius, enabling short-circuit breaking capacities up to 65kA without interphase flashover.
Rigid Mechanical Linkage and Dual Electrical Contact Interlocking

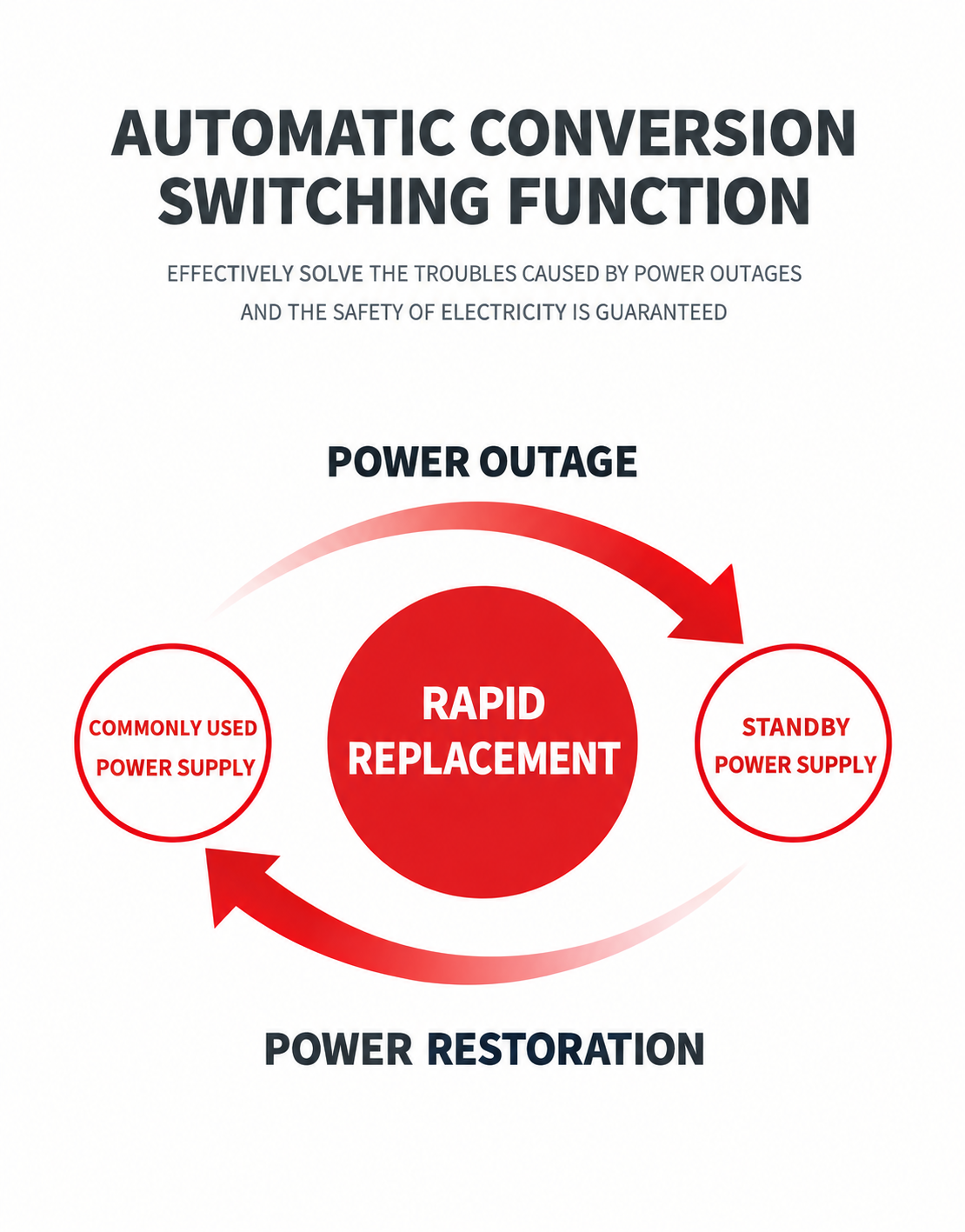

Dual-source switching reliability requires an absolute prevention of simultaneous utility and standby generator connection. In the MLQ series, interlocking is achieved through a heavy-gauge structural steel sliding cam mechanism that mechanically locks the alternate operating shaft in the open position before the active source contacts can initiate closing movement.
In addition to the mechanical barrier, internal microswitches provide continuous electrical interlocking by isolating the control supply to the opposing motor coil during transit and stationary closed states. This two-tier architecture protects downstream infrastructure against dangerous out-of-phase paralleling even in the presence of external electrical control faults.
To assist scheduled maintenance and emergency field servicing, the mechanical mechanism features a padlocking fixture in the central zero-position (neutral disconnect). When padlocked, all motor circuits and manual levers are mechanically locked out, maintaining a visible open gap compliant with standard industrial lockout-tagout (LOTO) safety protocols. To enhance maintenance safety across heavy industrial switchgear, MLQ5 series isolating transfer switches incorporate transparent inspection windows that provide visible verification of physical contact separation, while enabling operational flexibility through automated logic, remote electrical control, and manual override modes.
Microcomputer Logic Sensing and Broad Ambient Immunity

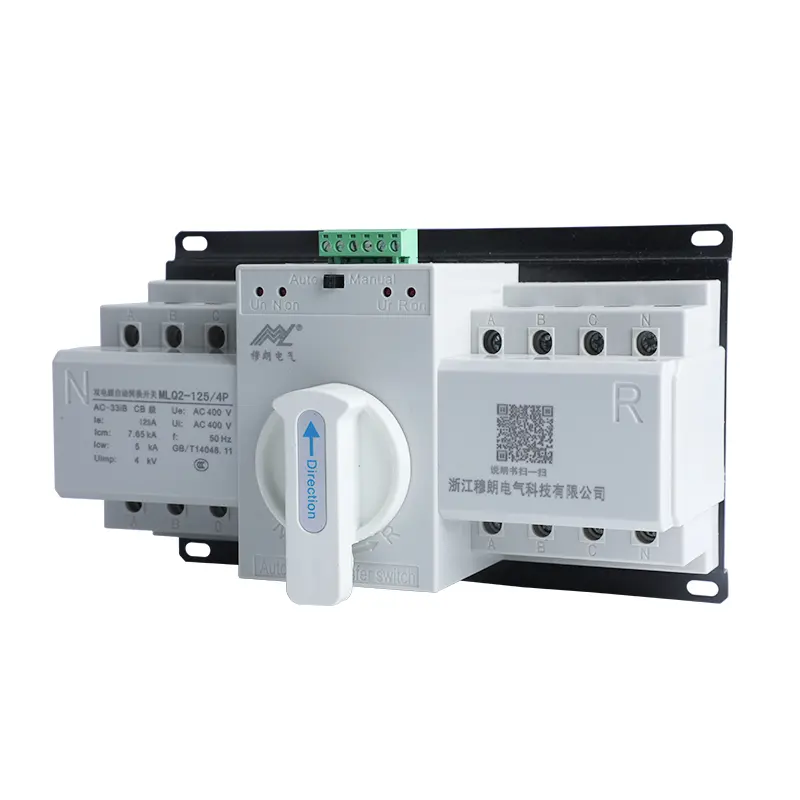

Operating within heavy industrial environments exposes electrical apparatus to extreme ambient temperatures, fine particulate dust, and severe voltage distortions. The integrated electronic controller inside MLELE motorized transfer switches continuously samples true RMS voltage, frequency stability (50Hz/60Hz), and phase sequence integrity across both primary and alternate sources. Configurable parameters enable field adjustment of transfer delay times (0s to 30s) to avoid unnecessary transfers during transient utility voltage dips. In critical auxiliary circuits backed by standby generation, MLQ2-125 series transfer switches utilize embedded voltage sensing logic to issue automated engine-start commands during utility voltage dips, executing load transfers only after the generator frequency and voltage reach stable operating thresholds.
Switch housings and structural insulating barriers are compression-molded from glass-fiber reinforced unsaturated polyester resin (BMC), achieving a UL94 V-0 flame-retardant rating and high tracking resistance (CTI ≥ 600V). The structural assembly maintains rated insulation voltage up to 800V and withstands ambient operating temperatures ranging from -5°C to +40°C without mechanical warping or dielectric degradation.
The internal control circuitry incorporates multi-stage varistor surge suppression and optoelectronic isolation across all input and output channels, maintaining electromagnetic immunity in environments with high harmonic distortion and adjacent high-voltage motor starters.
Heavy Industrial System Implementation and Technical Assurance
Maintaining uninterrupted power across heavy industrial plants requires rigorous factory quality verification. Every MLELE motorized automatic transfer switch undergoes rigorous routine testing prior to dispatch, including 2500V AC dielectric withstand validation, multi-phase contact resistance measurement, and calibrated torque verification. Backed by specialized engineering solutions across petrochemical, metallurgical, and chemical processing facilities, MLELE provides heavy industrial operators with certified apparatus designed for extreme mechanical endurance and high operational continuity.
From 6A sub-circuit control units to 3200A main substation distribution frames, MLELE supplies standardized automatic transfer switches compliant with IEC/EN 60947-6-1 and GB/T 14048.11 standards, holding CE, CB, CCC, and ISO9001 certifications. Routine production inspections validate contact resistance across each phase, dielectric withstand strength up to 2500V AC, and mechanical endurance across 10,000 continuous switching cycles.
Thorough export documentation, including Certificates of Conformance (COC), routine factory test logs, and customized 3D CAD interface drawings, supports international engineering teams in integrating motorized transfer hardware into mission-critical power distribution topologies.
