MLELE at Enlit Asia: Advanced Various Automatic Transfer Switch Solution Provider for Smart Grids

At Enlit Asia, Zhejiang Mulang Electrical Technology Co., Ltd. (MLELE) showcases its next-generation automatic transfer switch solutions tailored for smart grid modernization and distributed renewable integration across Southeast Asia. Bridging conventional power switching with modern distribution automation, MLELE supplies 35mm DIN-rail modular transfer switches and smart IoT-enabled protection apparatus to support ASEAN regional microgrid stability.

Compact 35mm DIN-Rail Modular Architecture

Rapid expansion of decentralized rooftop solar installations and modular telecom power enclosures necessitates compact switching apparatus. Conventional motorized transfer switches historically required specialized baseplate drilling, separate mounting brackets, and external control wiring assemblies that occupied substantial cabinet volume. The MLQ series miniature automatic transfer switches utilize a standard 35mm DIN-rail profile, allowing direct snap-on installation adjacent to standard miniature circuit breakers inside standard consumer distribution units.

Molded from flame-retardant polyamide compounds, the compact housing integrates both electrical transfer contacts and the motorized actuator mechanism within a standardized modular width. This physical consolidation simplifies switchboard layout planning, minimizes internal wiring connections, and reduces on-site installation labor across high-density residential and commercial microgrid distribution projects.

Uniform terminal clamp geometry accommodates rigid copper busbars and flexible multicore stranded wiring without requiring intermediate distribution blocks. This mechanical standardization ensures stable contact pressure across terminal connections, minimizing thermal rise during continuous operation in high-ambient tropical environments.

Smooth Solar PV and Inverter Grid Synchronization

Distributed solar renewable systems frequently alternate between on-grid feed-in, battery inverter support, and direct utility power during daily irradiance cycles. MLELE motorized transfer switches incorporate high-velocity transition kinematics that execute phase-to-phase source transfers within tens of milliseconds. This rapid operational speed maintains supply continuity for voltage-sensitive industrial computing servers, automated manufacturing lines, and commercial cold-storage refrigeration units.

Internal silver-alloy contact tips maintain low interfacial electrical resistance, supporting continuous current conduction spanning modular current ratings from 6A terminal sub-circuits up to 3200A heavy-duty main busbars. Arc splitters engineered from magnetic de-ionizing plates rapidly pull and extinguish DC-induced and AC switching arcs, preserving electrical isolation integrity across alternating power sources without contact welding.

The switching topology accommodates fluctuating power factor conditions and regenerative reverse current transients produced by solar grid-tied inverters. Dual mechanical and electrical interlocks prevent back-feeding into disabled utility segments, supporting worker safety during regional grid maintenance operations.

Intelligent Dry-Contact Generator Automation

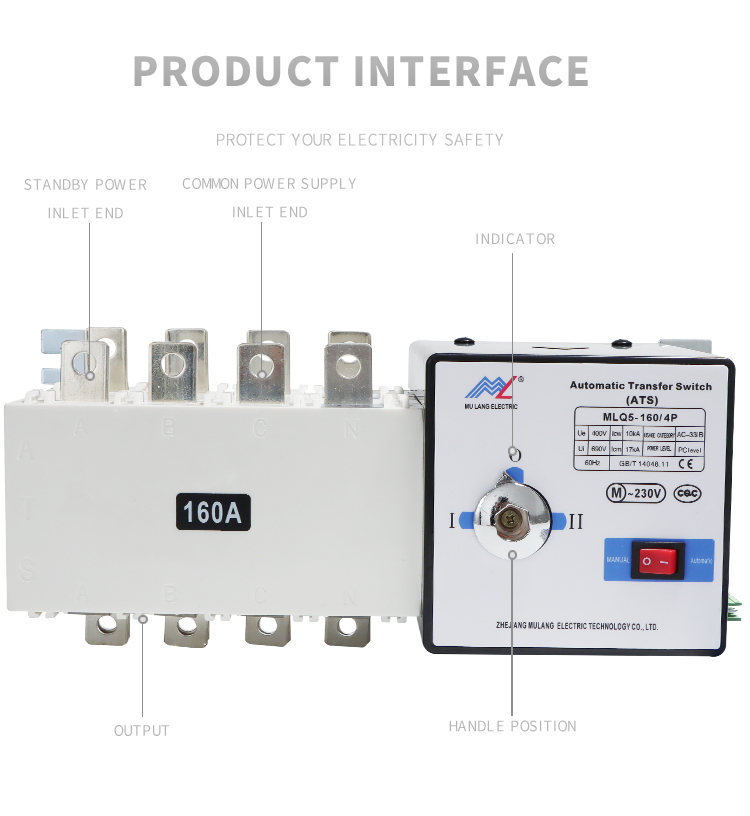

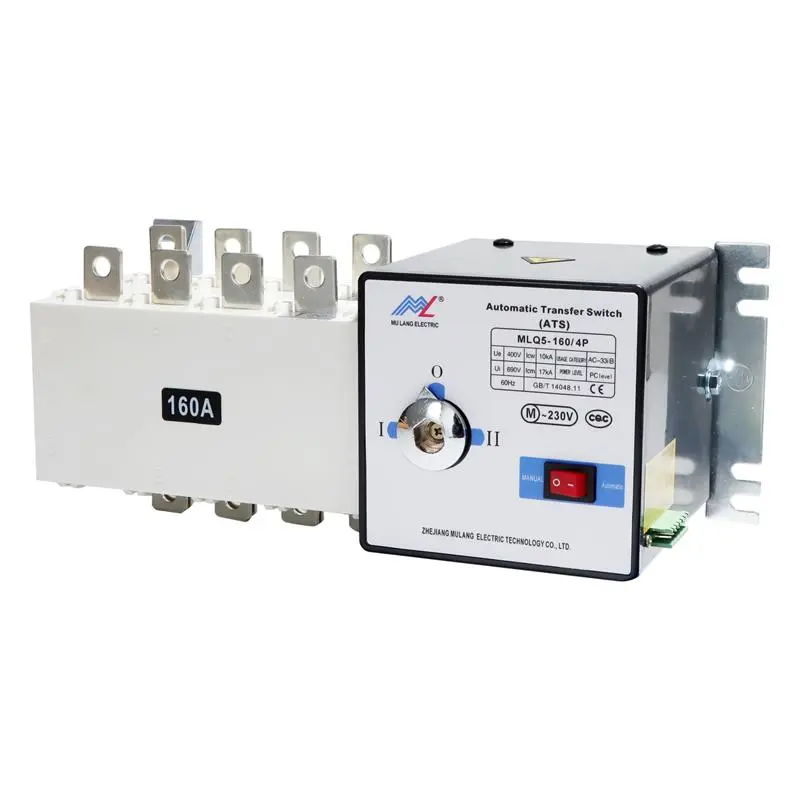

Industrial microgrids operating across tropical and remote ASEAN territories rely heavily on standby diesel generator sets during localized grid instability. MLELE MLQ5 and MLQ2 motorized transfer switches incorporate microcomputer logic controller boards that execute continuous true-RMS voltage and frequency monitoring across dual input supplies. When utility grid parameters fall below preset thresholds, the internal controller issues an automated engine start signal through dedicated dry contacts.

The control logic incorporates adjustable transfer delay timers (0 to 30 seconds) that allow the generator to reach nominal voltage and engine stability prior to closing the load contacts. Upon sustained restoration of normal utility voltage, the ATS executes an automated re-transfer back to primary power and maintains a cool-down delay signal to the generator set, automating the entire emergency power sequence without manual field intervention. Emergency power sequences are coordinated across different switchgear tiers: MLQ2-125 modular switches manage terminal generator circuits by validating engine stabilization before closing contacts, while high-capacity MLQ5 isolating switches handle primary intake lines with visible contact separation windows and flexible tri-mode operation across automated, remote, and manual controls.

Integrated LED status indicators and optional RS485 communication ports transmit real-time source parameters and contact positions directly to supervisory SCADA networks. Facility operators obtain immediate visibility into dual-source health and transfer histories across decentralized microgrid installations.

Coordinated Low-Voltage Electrical Ecosystem Protection

Smart grid distribution panels require multi-layered electrical protection combining switching capability with overvoltage mitigation and intelligent energy monitoring. Beyond motorized ATS units, MLELE manufactures a complete ecosystem of coordinated low-voltage apparatus. The portfolio includes Type 1 and Type 2 AC surge protective devices (MLY1 series) rated from 20kA to 100kA, high-voltage DC solar SPDs operating up to 1500V DC, and IoT-enabled miniature circuit breakers supporting wireless Wi-Fi and 4G remote metering.

Integrating MLELE surge protection directly upstream of the automatic transfer switch shields the internal microcomputer logic board and motor actuators against atmospheric lightning surges and switching transients common in tropical ASEAN environments. Downstream IoT smart breakers monitor branch-circuit power consumption in real time, delivering an integrated, factory-matched distribution solution for regional panel builders and EPC contractors.

Coordinated component sizing across breaking capacities up to 65kA ensures full selectivity during high-energy short-circuit faults. Faulted branch circuits isolate instantaneously without triggering total facility power interruptions.

Manufacturing Verification and ASEAN Regional Engineering Support

Accelerating smart grid and renewable microgrid deployments across ASEAN markets requires coordinated apparatus manufacturing and streamlined regional logistics. MLELE delivers complete low-voltage equipment ecosystems, pairing MLQ series modular transfer switches with DC 1000V/1500V surge protective devices, RT18 photovoltaic fuses, and solar combiner boxes. Verified under IEC 60947-6-1 and IEC 61643-11 standards, all export shipments include Form E Certificates of Origin for regional tariff advantages, supporting ASEAN utilities and microgrid EPCs with integrated technical documentation.

To support international switchgear builders and private-label brand distributors across Thailand, Vietnam, Indonesia, and the wider ASEAN region, MLELE provides agile OEM and ODM engineering services. Standardized functional samples are dispatched within approximately 7 days, with commercial volume orders completed within 20 to 30 days. Custom front-panel laser marking, tailored busbar terminal orientations, and thorough export documentation ensure smooth project integration.

MLELE application engineering teams collaborate directly with international technical specialists to verify structural mounting dimensions, auxiliary contact schematics, and export packaging specifications prior to volume production. This direct OEM-level engineering alignment delivers dependable technical assurance across regional smart grid deployments.

Access the official portal at https://www.mlele.com/ to download thorough technical datasheets and review OEM/ODM motorized transfer switch configurations.
